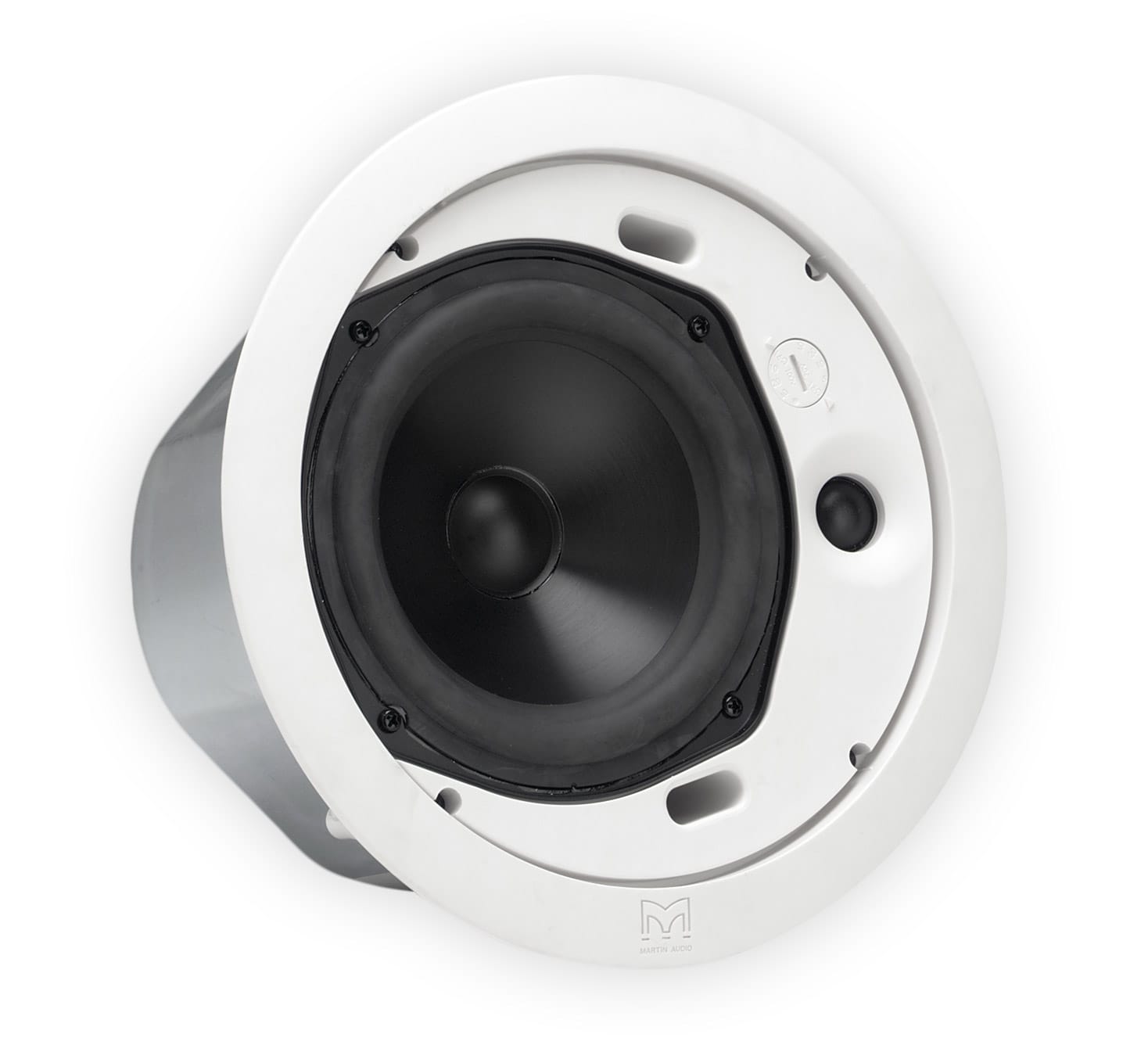

Martin Audio C6.8T 6.5″ Passive Full-range Ceiling Speaker
RM1,840.00
Featuring a 6.5" (165mm) bass driver and a 0.8" (19mm) dome tweeter, The C6.8T is ideal for flush mounted applications where full frequency performance and wide dispersion are required from a compact, ported enclosure.
Features
- Two-way high performance flush mounting ceiling speaker
- 6.5" (165mm) UL94V-0 carbon fibre loaded polypropylene cone bass driver
- Very wide dispersion – 150° conical up to 7kHz
- High & low impedance operation – transformer included
- 106dB continuous max SPL @ 1 metre
- 75W power handling – 16 ohm (40W transformer)
- Polyswitch and thermal fuse protection
- Steel backcan
- UL2043 & UL1480
Applications
- Fixed installations in ceiling and walls
- Low ceiling environments
The side-by-side arrangement of the drive units maintains smooth response up to 75° off-axis and makes the C6.8T perfectly suited for use in low ceilings, where its broad coverage means that fewer units will be required to deliver premium sound over the required listening area. The C6.8T features a 4-point mounting system for ease of installation and a rising clamp plug and socket permit easy pre-wiring with up to 2.5mm2 conductors.
These products comply with UL2043 Fire Tests for Heat & Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.
Listed UL1480 General Signalling Speakers.
SUITABLE FOR USE IN AIR HANDLING SPACES
| TYPE | Ceiling mounted, two-way vented enclosure |
| FREQUENCY RESPONSE (5) | 90Hz-20kHz ± 3dB -10dB @ 70Hz |
| DRIVER |
|
| RATED POWER (2) | 75W AES, 300W peak |
| SENSITIVITY (8) | 89dB |
| MAXIMUM SPL (9) | 106dB continuous, 112dB peak |
| NOMINAL IMPEDANCE | 16Ω |
| DISPERSION (-6dB) | 150° conical up to 7kHz |
| CROSSOVER | 4kHz passive |
| ENCLOSURE | Steel backcan |
| FINISH |
|
| PROTECTIVE GRILLE | Perforated steel |
| CONNECTORS | Rising clamp plug and socket |
| ACCESSORIES (included) |
|
| VOLTAGE TAPS |
|
| DIMENSIONS | (OD) 260mm x (D) 181mm (OD) 10.2ins x (D) 7.1ins |
| CUT-OUT DIAMETER | 224mm (8.83 ins) |
| WEIGHT | 3.5kg (7.7lbs) |
