ATC SCM12P Pro 2-way Passive Studio Monitors


SKU: N/A Categories: , Tags: , , , , , ,

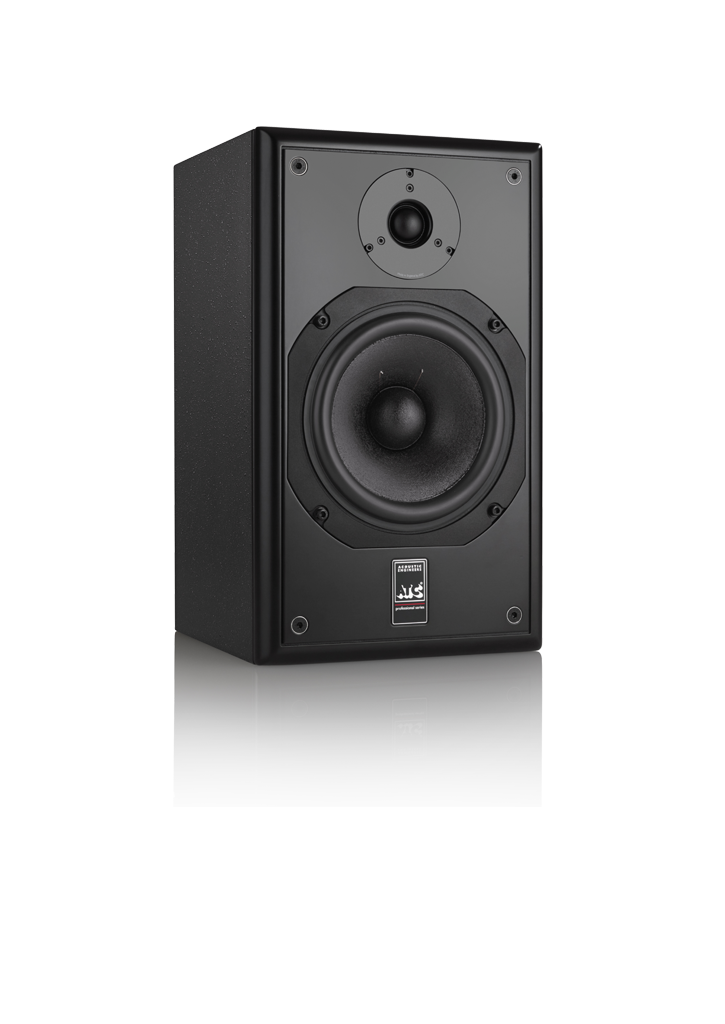

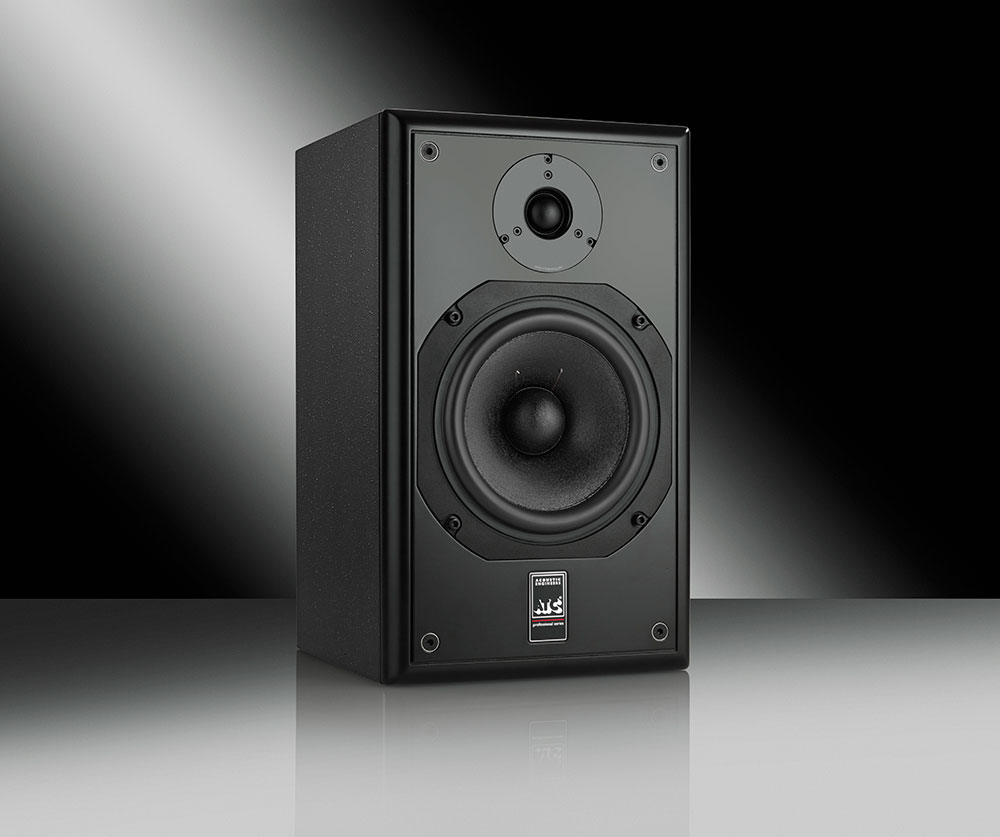

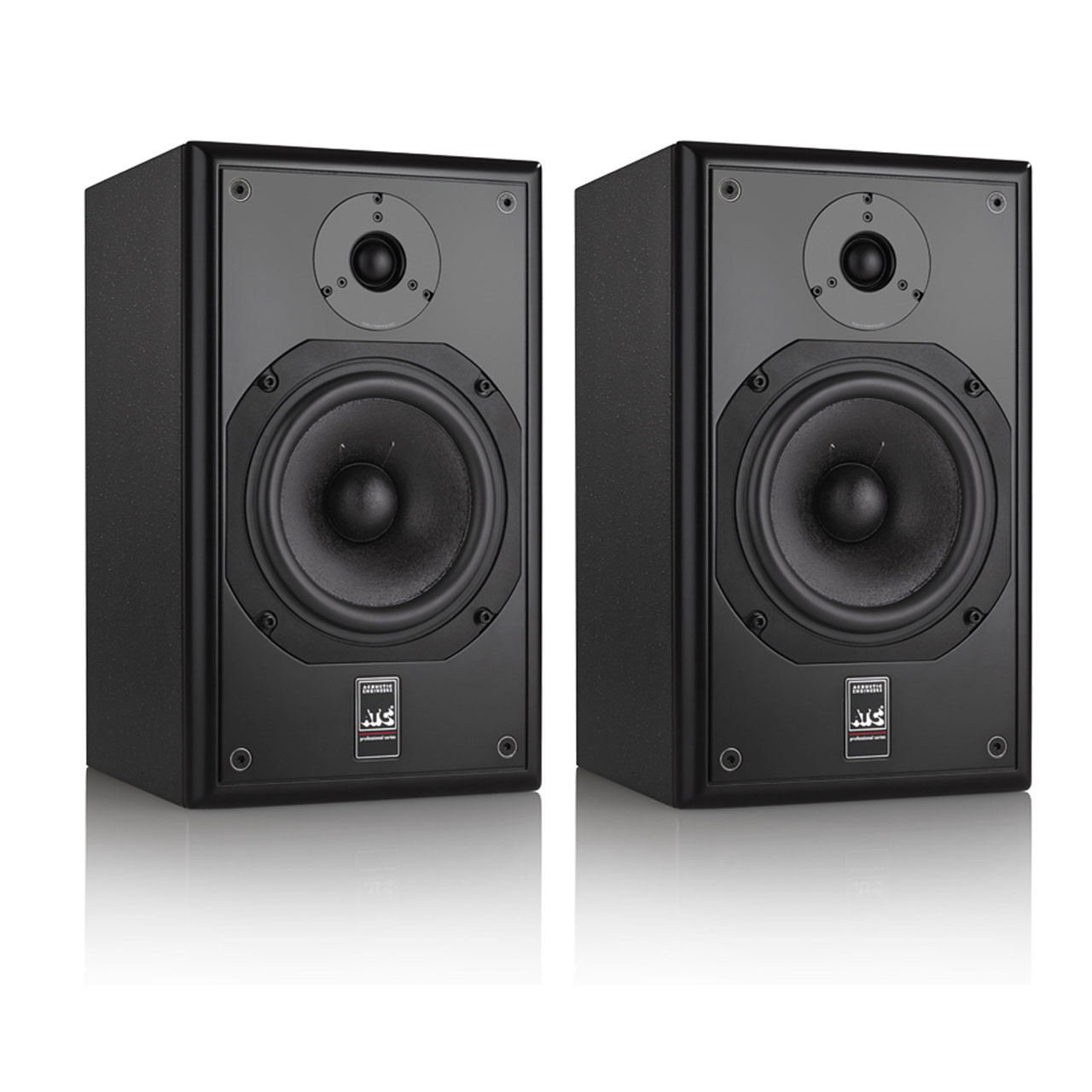

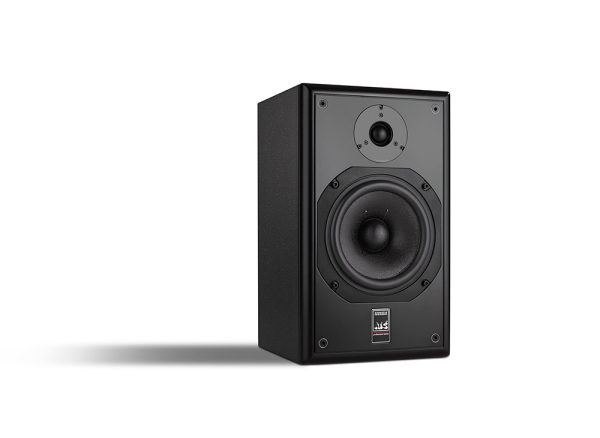

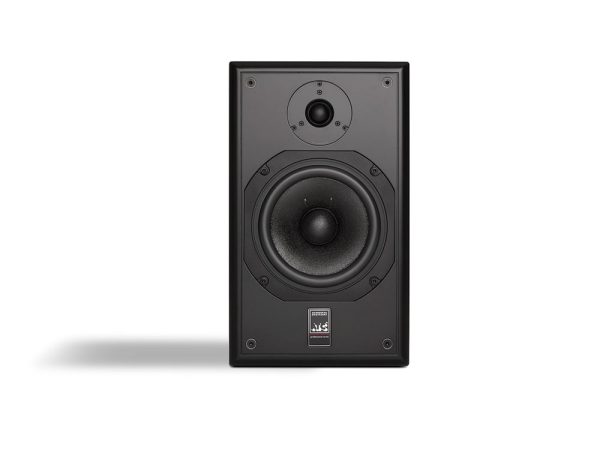

SCM12 Pro


  • Compact high performance 2-way studio monitor.
  • Ideally suited to:
    – critical near-field listening applications in all control rooms
    – LCR surround monitoring in small-to-medium control rooms.
    – surround channels for immersive audio (Auro 3D, Dolby Atmos, DTS-X)
  • Proprietary ATC 150mm/6˝ CLD Mid/Bass Driver.
  • Proprietary ATC 25mm/1˝ Dual Suspension Tweeter.
  • Wide dispersion.
  • 6 year warranty.

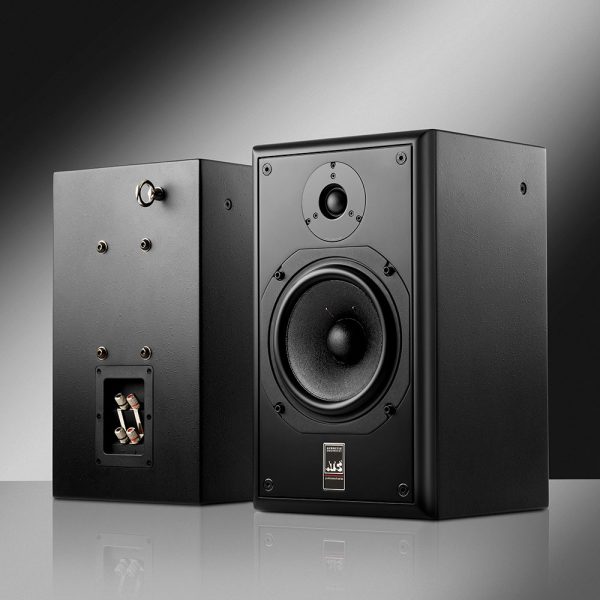

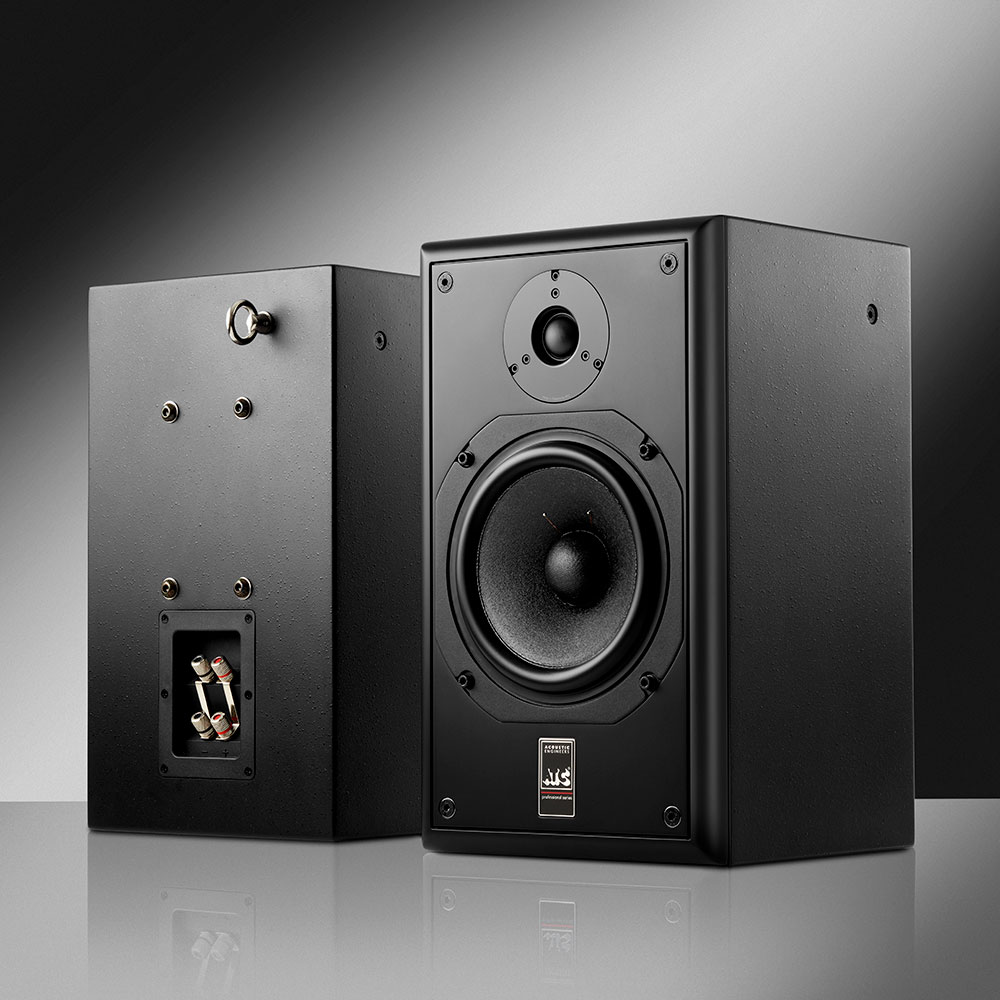

Installation version also available SCM12i.

Drivers: HF ATC 1˝/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
LF ATC 6˝/150mm Constrained Layer Damping (CLD) (SB45-150CLD 8 Ohm)
Amplitude Linearity: 80Hz – 16kHz (+/-2dB)
Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Maximum Continuous SPL: 108dB (per pair @ 1m)
Crossover Frequency: 2.2kHz
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm

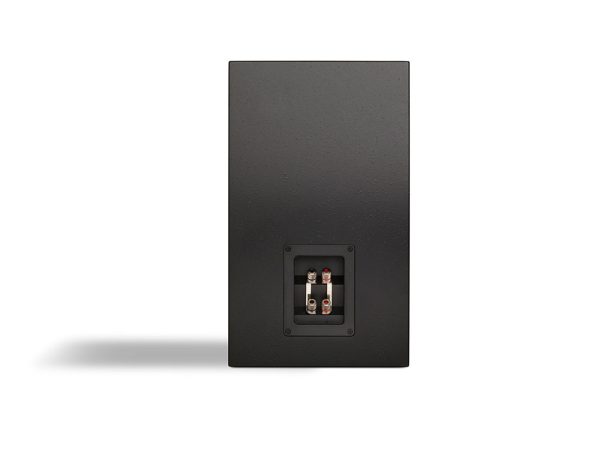

Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 400x238x235mm/15.7˝x9.4˝x9.3˝
Weight: 11kg/24lbs (per cabinet)

Additional information

Weight N/A
Dimensions N/A

SCM12 Pro, SCM12i Pro
