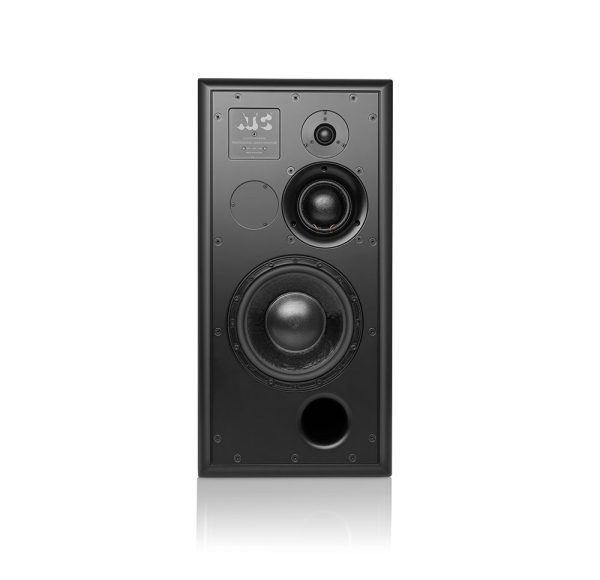

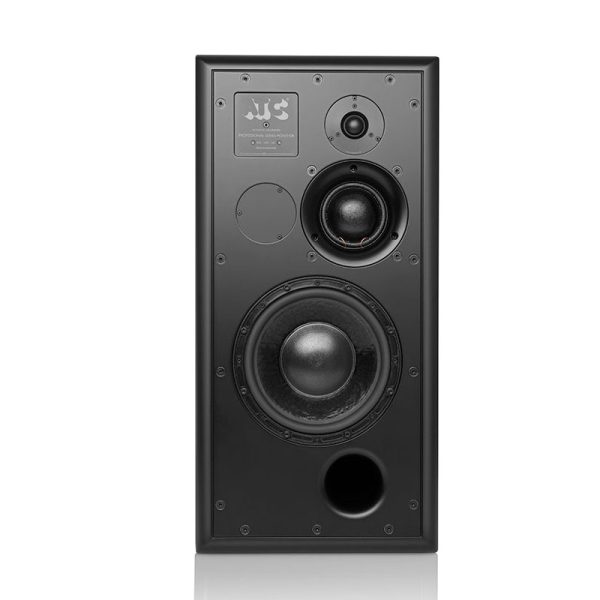

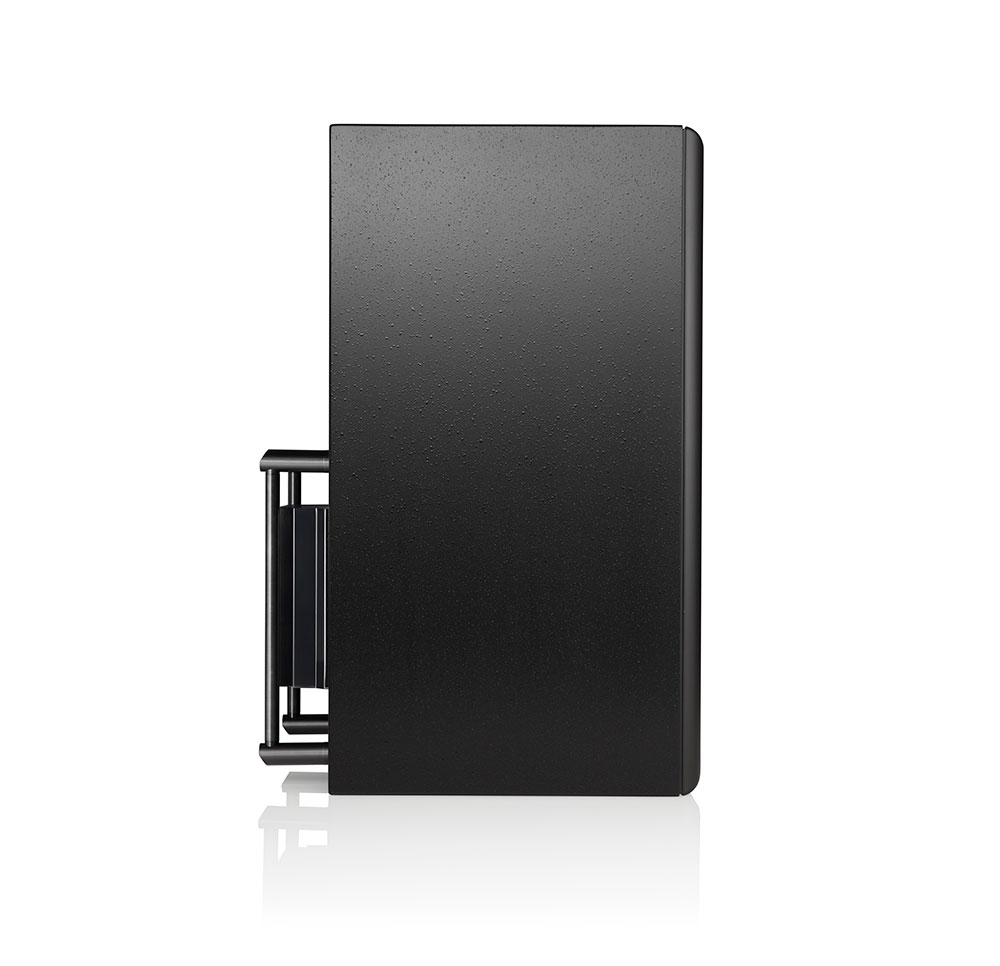

SCM50ASL Pro
Overview

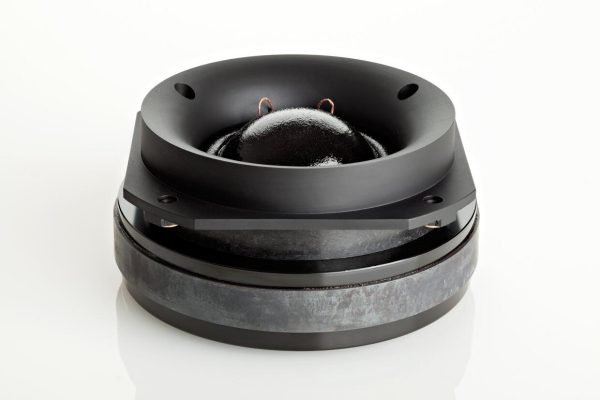

- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.

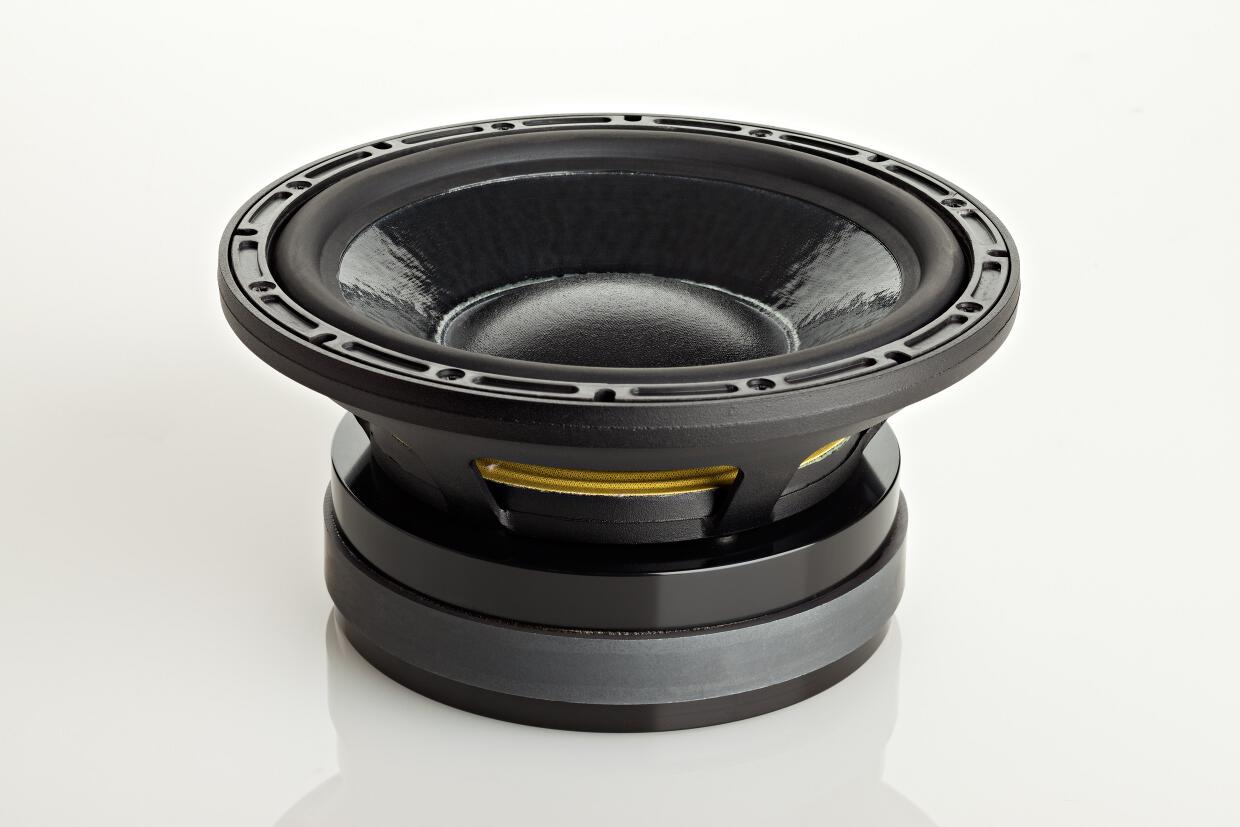

- Full “SL” spec 9˝/234mm bass driver.
- ATC 75mm “Super Dome” mid driver.
- On board grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
Weight: 49kg / 107.8lbs
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
Weight: 49kg / 107.8lbs
Additional information
Weight | 49 kg |
---|---|
Dimensions | 72 × 35 × 40 cm |
