Martin Audio Blackline XP118 18″ Powered Portable Subwoofer (ea)

RM13,485.00

Categories: , , Tags: , , , , ,

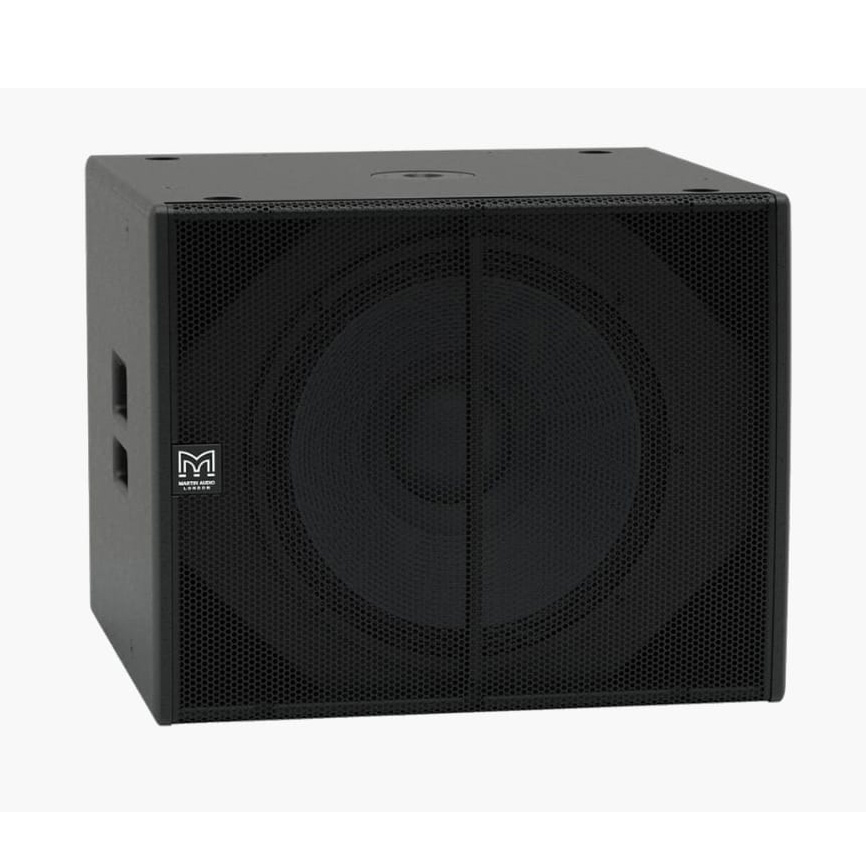

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked or flown via integral M10 insets.

Features

  • Compact, self-powered subwoofer
  • 1 x 18” (460mm) driver with 4” (100mm) voice coil
  • 2000W of Class D amplification
  • Global power supply with PFC (Power Factor Correction)
  • Onboard DSP with rotary control interface
  • Multi-function display for metering, control and function selection
  • Peak and RMS limiters
  • Bluetooth® control and streaming option
  • Durable plywood enclosure
  • Perforated steel grille
  • Integral ergonomic handles
  • 35mm pole-mount socket

Applications

  • Portable Sound Reinforcement
  • Live Music Clubs
  • Nightclubs, Bars and Restaurants
  • Corporate AV
  • Hotels and Casinos
  • Mobile DJ’s
  • Weddings and Parties
  • HoW Installations
  • Rehearsal Studios

Featuring a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and control functions are provided by onboard DSP via a rotary encoder interface and multi-function colour screen on the rear panel.



The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

Specification
Acoustics
TYPE Compact, Self-powered Subwoofer
FREQUENCY RESPONSE (5) 42Hz –150Hz ±3dB
-10dB @ 38Hz
DRIVER 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
MAXIMUM SPL (9) 131dB continuous, 137dB peak (half space)
DISPERSION (-6dB) Omnidirectional
CROSSOVER 100Hz, active
Module Audio In/Out
INPUT CONNECTORS 2 x female XLR/ 1⁄4” jack combo
MIC/LINE INPUT IMPEDANCE 8 kΩ balanced
1⁄4” JACK TS INPUT IMPEDANCE 1 MΩ unbalanced
MIX OUTPUT CONNECTOR 1 x male XLR
MIX OUTPUT IMPEDANCE 600Ω balanced
Internal Processing
Input channel EQ 3 band
Speaker EQ 2 presets: XP118 with XP12, XP118 with XP15
Protection Peak and RMS limiting, amplifier thermal protection
Amplifier Module
TYPE Class D, Bridged Tied
PEAK OUTPUT POWER 2000W total
AVERAGE EFFICIENCY 89%
COOLING Convection
MAXIMUM AMBIENT TEMPERATURE 35°C (95°F) for full output
Power Supply
TYPE Switch-mode, fixed frequency with PFC
AC INPUT OPERATING RANGE 100 – 240V ~ AC, 50 - 60Hz
POWER FACTOR > 0.98
NOMINAL POWER CONSUMPTION 1000W Max
MAINS CONNECTOR 3-pin IEC
Mechanical
ENCLOSURE Birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel
FITTINGS 16 x M10 inserts, pole-mount socket
2 x bar handles, provision for castors
DIMENSIONS (W) 662mm x (H) 536mm x (D) 640mm
(W) 26.1in x (H) 21.1in x (D) 25.2in
WEIGHT 44kg (97lbs)
