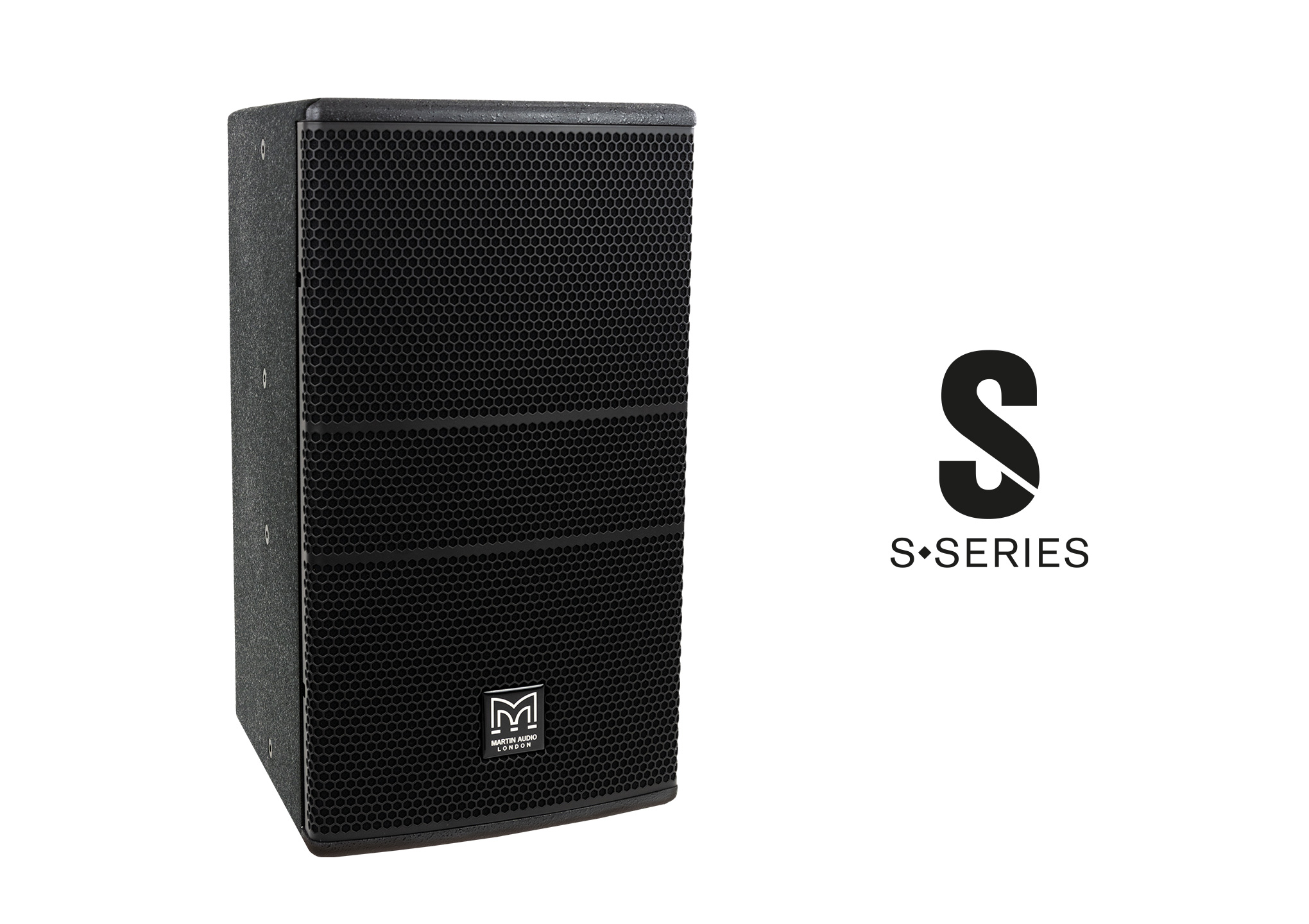

Martin Audio S.10 10″ Passive Two-Way On-wall KTV Loudspeaker
RM3,995.00
The S.10 is very compact, two-way passive loudspeaker designed for family KTV, BOX KTV and music bars rooms which call for enjoyable sound over short throw distances. It utilises a 10” (250mm)/2.5” (63mm) voice coil LF driver and a 1” (25mm) exit HF compression driver with a 1.4” (35mm) polyimide diaphragm.
Features
- Full-range, passive two-way system
- KTV specific voicing
- Enhanced bass response from rear port
- LF driver with demodulating ring for distortion-free vocals
- User-rotatable horn
- Vertical and horizontal mounting option
- Cloth-backed perforated steel grille
- Trapezoid enclosure with textured finish
- 8Ω nominal impedance
- Internal crossover network with LF and HF driver protection
- Twin NL4 connectors
- Multiple M8 rigging inserts
Applications
- Family KTV, BOX KTV and KTV lounges
- Music bars
It is capable of high output levels for its small size and its rotatable 90° x 50° HF horn provides extremely smooth coverage. Equal horizontal and vertical horn mouth dimensions ensure its excellent directivity control is maintained in both planes. The V.10’s trapezoid enclosure is constructed from 15mm engineered wood fibre and finished in a textured black paint. It is fitted with a cloth-backed protective steel grille and M8 inserts are provided for eyebolt suspension and installation.
| TYPE | Compact, passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB, -10dB @ 49Hz |
| DRIVER |
|
| RATED POWER (2) | 500W program, 1000W peak |
| SENSITIVITY (8) | 98dB |
| MAXIMUM SPL (9) | 124dB program, 127dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 90° H x 50° V (user-rotatable) |
| CROSSOVER | 2.8kHz passive |
| ENCLOSURE | Trapezoid |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 14 x M8 inserts |
| DIMENSIONS |
|
| WEIGHT | 16kg (35.3lbs) |
