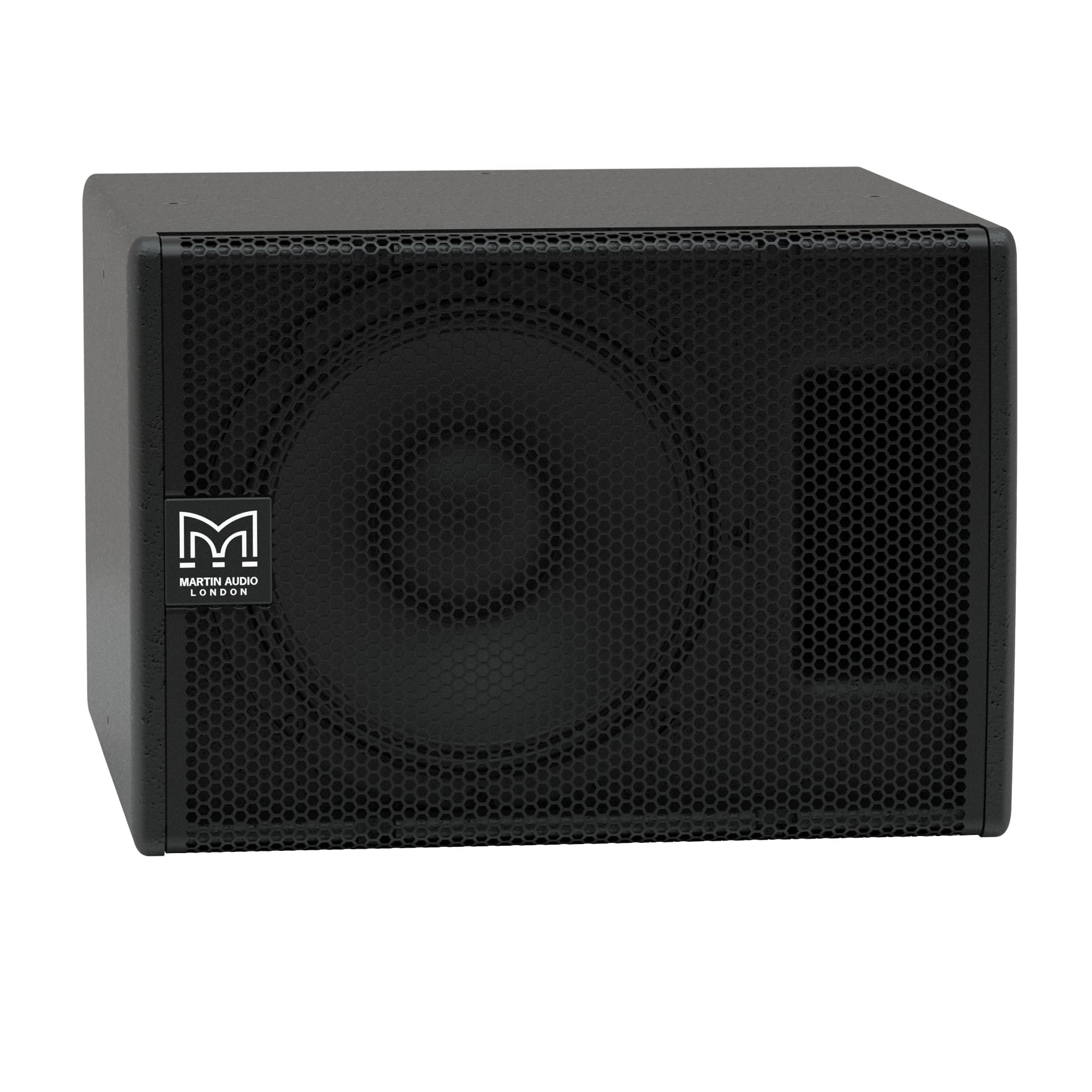

Martin Audio SX110 10″ Passive Slimline Subwoofer
RM3,823.00
The SX110 is an slimline subwoofer designed for applications that call for increased impact and low frequency performance in a visually unobtrusive enclosure. Its very small size makes it perfectly suited to installed sound applications where space is limited such as under banquette seating.
Features
- Slimline direct-radiator subwoofer
- 1 x 10” (250mm) driver with 2” (50mm) voice coil
- Large port for reduced air noise
- Perforated steel grille
- 8Ω nominal impedance
- M8 flying inserts
Applications
- Retail outlets
- Cafes, bars and restaurants
- Museums and Houses of Worship
- Fitness clubs
- Educational facilities
- Hotels and convention centres
The SX110 features a 10” (250mm)/2” (50mm) voice coil driver and generously sized low frequency port for reduced air noise. An ideal subwoofer to augment the bass output of ADORN Series or small CDD loudspeakers, it can be used on the ground or flown using integral M8 inserts.
The SX110 enclosure is constructed from plywood and finished in black or white textured paint as standard. An impact-resistant perforated steel grille protects the drivers, and rubber feet on the base resist movement.
When used with Martin Audio full-range systems, crossover and EQ functions can be performed by the DX0.4, DX0.6 or DX4.0 system controller.
| TYPE | Slimline, direct radiating subwoofer |
| FREQUENCY RESPONSE (1) | 50Hz-150Hz ± 3dB, -10dB @ 42Hz |
| DRIVER | 1 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet |
| RATED POWER (2) | 200 W AES, 800 W peak |
| RECOMMENDED AMPLIFIER | VIA 2502 |
| SENSITIVITY (10) | 97dB |
| MAXIMUM SPL (9) | 120 dB continuous, 126 dB peak, 132 dB peak with crest factor 4 |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | Plywood |
| FINISH | Black or white |
| PROTECTIVE GRILLE | Perforated steel |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | +1, -1 Link through: +2, -2 |
| PINS CONNECTIONS (LINK) | +1, -1 Link through: +2, -2 |
| FITTINGS | 12 x M8 inserts |
| DIMENSIONS (INCL FEET) |
|
| WEIGHT | 12kg (26.5lbs) |
