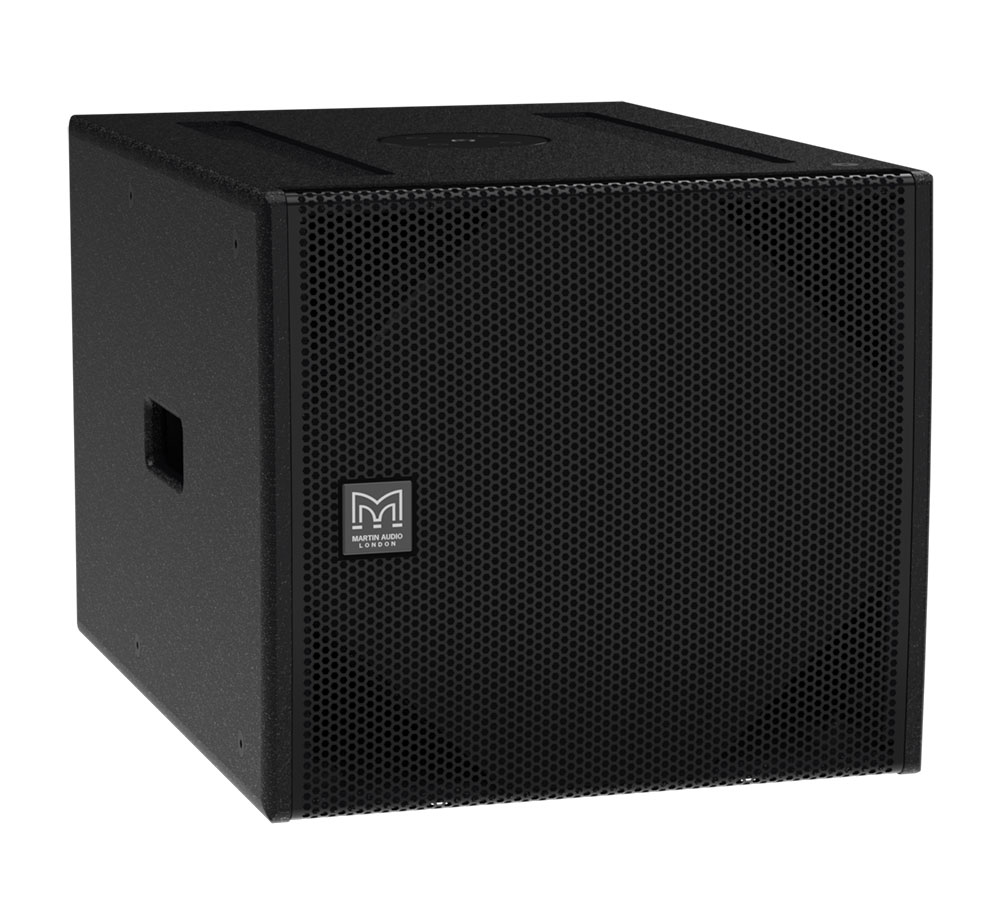

Martin Audio SX115 15” compact, passive, direct radiating subwoofer
RM13,485.00
The SX115 is a versatile, passive subwoofer with an operating range of 45-100Hz + 3dB. Featuring a powerful, long excursion 15” (380mm)/4” (100mm) voice coil driver with a water-resistant cone and triple roll surround, it delivers dynamic low frequency performance from a very compact enclosure. Four reflex ports increase LF output efficiency and have a large frontal area to reduce turbulent air noise at high levels.
Features
- Compact, direct radiating subwoofer
- Long excursion 15” (380mm)/4” (100mm) voice coil driver with water-resistant cone
- High output capability
- Plywood enclosure with flying inserts
- Large ports for reduced air noise
Applications
- Live sound reinforcement for small and medium-size venues
- Fixed installations in concert halls, theatres and ballrooms
- Houses of Worship
- Conference halls and corporate AV events
- Nightclubs, bars and hotels
- Retail outlets and leisure centres
The durable plywood enclosure is finished in hardwearing textured paint and incorporates threaded inserts for eyebolt suspension of a single enclosure, as well as safety points. Inserts are also provided for the attachment of side rigging strips to assemble a flown installed array of up to four enclosures.
Ergonomic pocket handles assist handling and installation, and the driver is protected by a coated steel grille with an acoustically transparent fabric backing. An M20 threaded plate on the top surface facilitates pole-mounting of Martin Audio full-range enclosures.
The SX115 can be used as a stand-alone subwoofer or stacked using locating skids and mating channels at the base and top of each enclosure. Cardioid operation can be achieved by arranging the SX115 in forward and rear-facing pairs, with each enclosure powered individually in conjunction with dedicated DSP presets.
The SX115 is available in black and as standard is suppled without castors which are available as an accessory pack.
The optional connector cover makes the SX115 weather resistant and suitable for outdoor usage.
| TYPE | Direct radiating subwoofer |
| Crossover Frequency | 100Hz |
| FREQUENCY RESPONSE 4π (5) | 45Hz - 100Hz ± 3dB, -10dB @ 36Hz |
| DRIVERS | LF: 15” with 4” Voice coil, Ferrite Motor |
| SENSITIVITY | (2.83V 1m half space) 100dB |
| NOMINAL IMPEDANCE | 8 Ohms |
| RATED POWER | AES 800W, PEAK 3200W |
| MAXIMUM SPL (SYSTEM) | 129 dB continuous, 135 dB peak, 141 dB peak with crest factor 4 |
| DISPERSION | Omni-Directional or cardioid when paired |
| Connectors | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | 1+/1– |
| PIN CONNECTIONS (LINK) | 1+/1− (linked from input 1+/1−), 2+/2− (linked from input 2+/2−) |
| FITTINGS |
|
| DIMENSIONS | (W) 500mm, (H) 451mm, (D) 678mm (806mm with Casters) (W) 19.69ins, (H) 17.76ins, (D) 26.69ins (31.73ins with Casters) |
| WEIGHT | 36.5kg (80.5lbs) |
