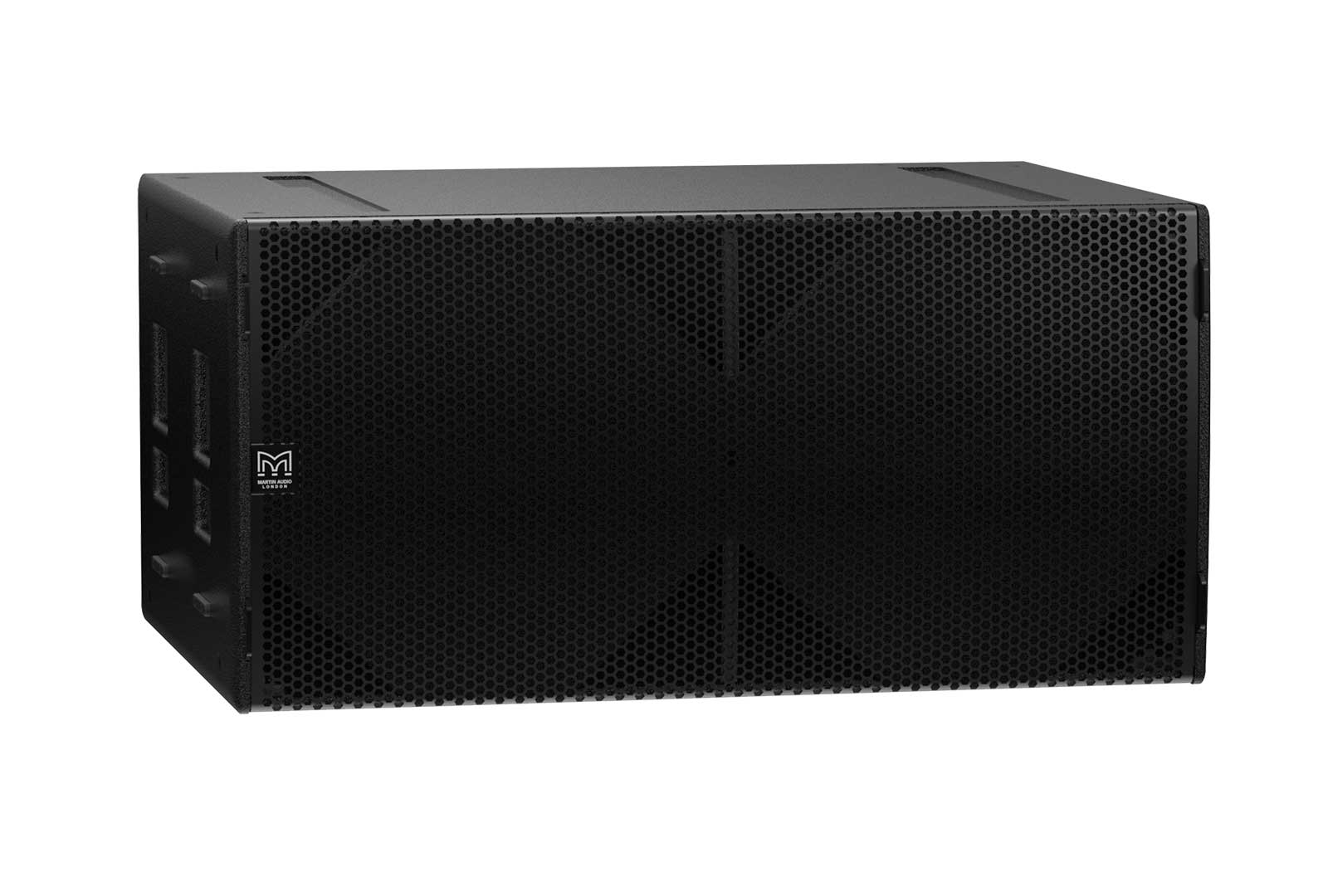

Martin Audio SX218 2 x 18" Passive Direct Radiating Subwoofer

Martin Audio SX218 2 x 18″ Passive Direct Radiating Subwoofer

RM35,936.00

Categories: , Tags: , , , Brand:

The SX218 delivers very high output levels and superb transient performance with minimal distortion.

Please note this product has been updated since January 2019 from an earlier iteration.

Features

  • Dual-driver, direct radiating subwoofer
  • 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
  • Very high output capability
  • Tour-grade plywood enclosure with flying inserts

Applications

  • Touring sound reinforcement for small and medium-size venues
  • Fixed installations in concert halls, theatres, ballrooms and HoW
  • Sports stadium, arena installations & corporate AV events
  • Outdoor restaurant, bar and hotel entertainment areas
  • Concourses and Theme Parks

With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES and has a magnet structure which is suspension engineered for maximum linear excursion.

The enclosure is constructed from multi-laminate birch ply and finished with a durable polyurea coating. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage. SX218 features a M20 pole mount insert for added versatility in deployment.

The product is supplied as standard without cabinet wheels, but they are available as an accessory.

By adding the input board cover accessory, SX218 is fully weather resistant and suitable for permanent outdoor usage.

Specification
TYPE Dual-driver, direct radiating subwoofer
FREQUENCY RESPONSE (1) 35Hz – 150Hz ±3dB,
-10dB @ 30Hz
DRIVER 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
RATED POWER (2) 2000W AES, 8000W peak
SENSITIVITY (10) 105dB
MAXIMUM SPL (9) 144dB
NOMINAL IMPEDANCE 2 x 8Ω
DISPERSION (-6dB) Omnidirectional/or Cardioid (paired)
ENCLOSURE Multi-laminate birch/poplar ply
FINISH Durable Polyurea Coating
PROTECTIVE GRILLE Black perforated Zintec
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) LF1: 1+, 1- LF2: 2+, 2-
PINS CONNECTIONS (LINK) LF1: 1+, 1- LF2: 2+, 2-
FITTINGS
  • Two skids on base, with mating channels on top
  • 24 x M10 mounting points
  • 4 x bar handles, 2 on each side
  • 4 x fittings for optional transit cover
  • M20 Pole mount insert
  • 16 x M8 inserts for optional castors
DIMENSIONS (INCL SKIDS)
  • (W) 1093mm x (H) 537mm x (D) 792mm
    (920mm including castors)
  • (W) 43in x (H) 21.1in x (D) 31.2in
    (36.2in including castors)
WEIGHT
  • 98.5kg (217lbs) w/o castors
  • 102kg (225lbs) with castors
