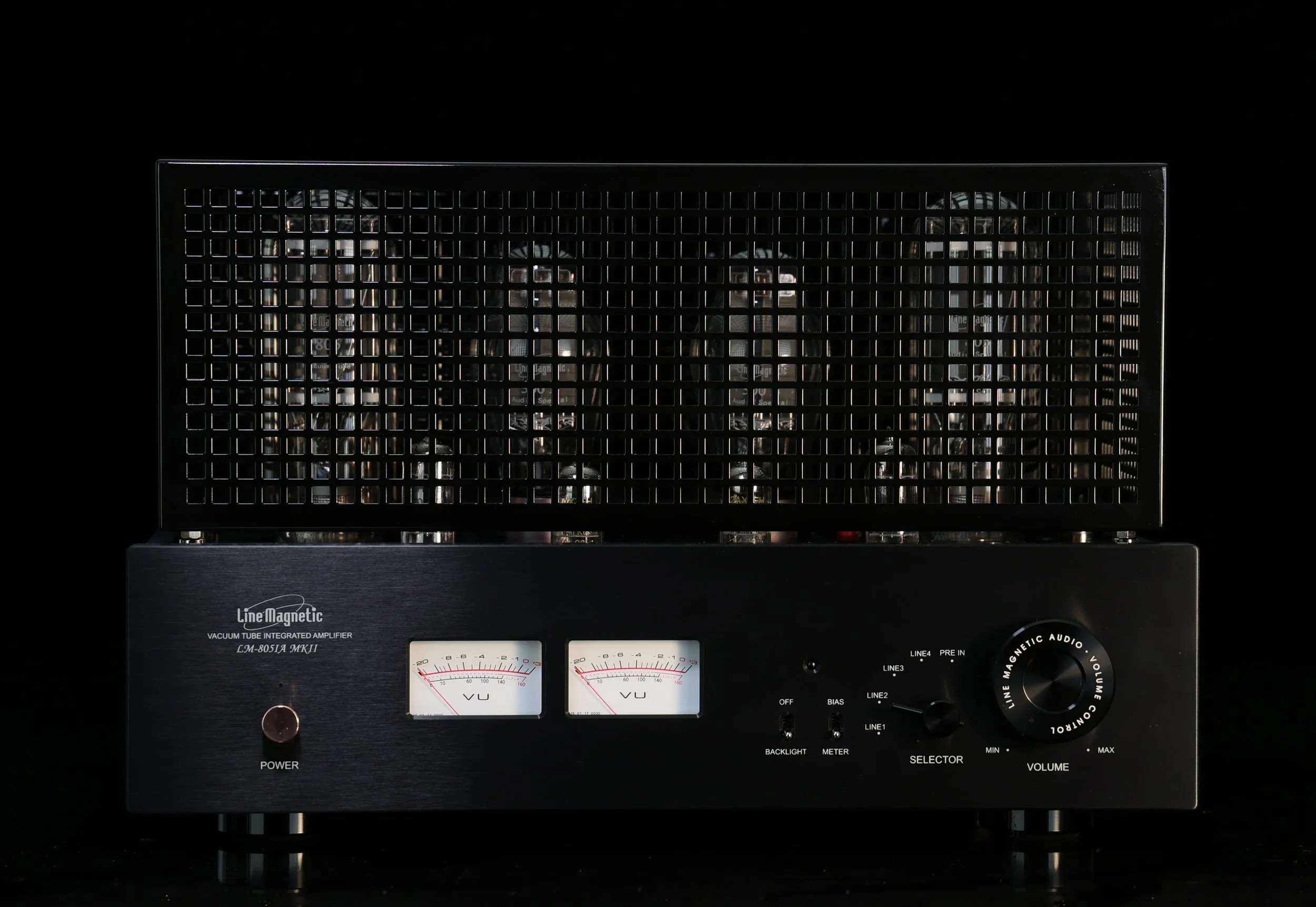

Line Magnetic LM-805IA MKII Integrated Tube Amplifier
RM15,800.00
The LM-805IA MKII is a hi-end integrated stereo amplifier known for its powerful and pure Class A sound, delivering 50 watts per channel through a Single Ended Triode (S.E.T.) design using 805 output tubes.
It has undergone significant upgrades from its original version, including improvements to the chassis, tubes, transformers, capacitors, chokes, tube sockets, and speaker binding posts, all contributing to enhanced performance.
The amplifier features quality components such as a 900W power supply transformer made with Nippon Steel Ultra-Capacity Toroidal Core, Mundorf N-Cap capacitors, and an ALPS potentiometer, with internal point-to-point wiring for durability and sound integrity. A rear-illuminated front panel meter provides easy bias adjustment.
Thanks to its robust power and current handling, the LM-805IA MKII can drive various speakers, delivering the legendary sound quality and musicality associated with the 805 triode tubes. It is highly recommended for audiophiles looking for Line Magnetic's distinctive sound, offering strong drive and dynamic presence.
This model is designed to meet Australian standards of 240V and comes with an Malaysia local warranty.
Main Features
Class A Single-Ended-Triode (S.E.T.) amplifier
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter
Soft Start and time-delay (30 seconds) circuit
A specially designed 900w Nippon Steel toroidal core transformer for power supply
Two Japanese audio-grade Z11 EI output transformers with wide bandwidth
All transformers and chokes are encapsulated and mounted separately to minimize interference between components.
ALPS volume control and high capacity Mundorf N-Cap capacitors
Metal removable tube guard cage
Infrared remote control
Specification
Class A amplifier - 50W + 50W
Load impedance: 4/ 8/ 16Ω

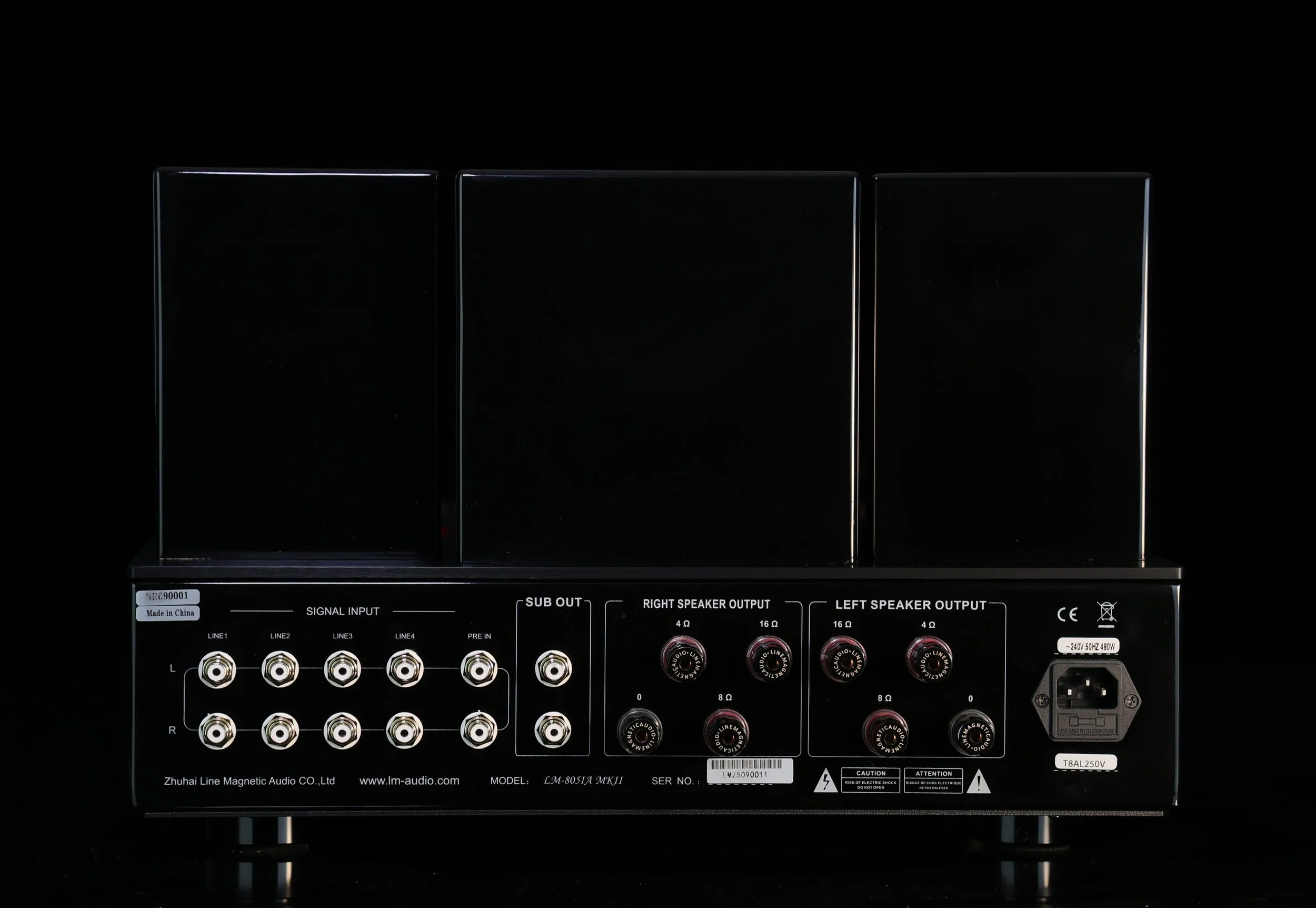

Analogue Inputs: 4x RCA line inputs and 1x Pre-in
Analogue Outputs: 2 x Screw terminals compatible with banana plugs; 1x Sub Out
Frequency Response (-0.5dB): 20 – 30 kHz
Signal/Noise ratio: 87dB
THD: 1% (1kHz)
Pre-in: 1000 mV
Input Sensitivity: 300 mV (Built-in Mode)
Input Impedance: 100kΩ

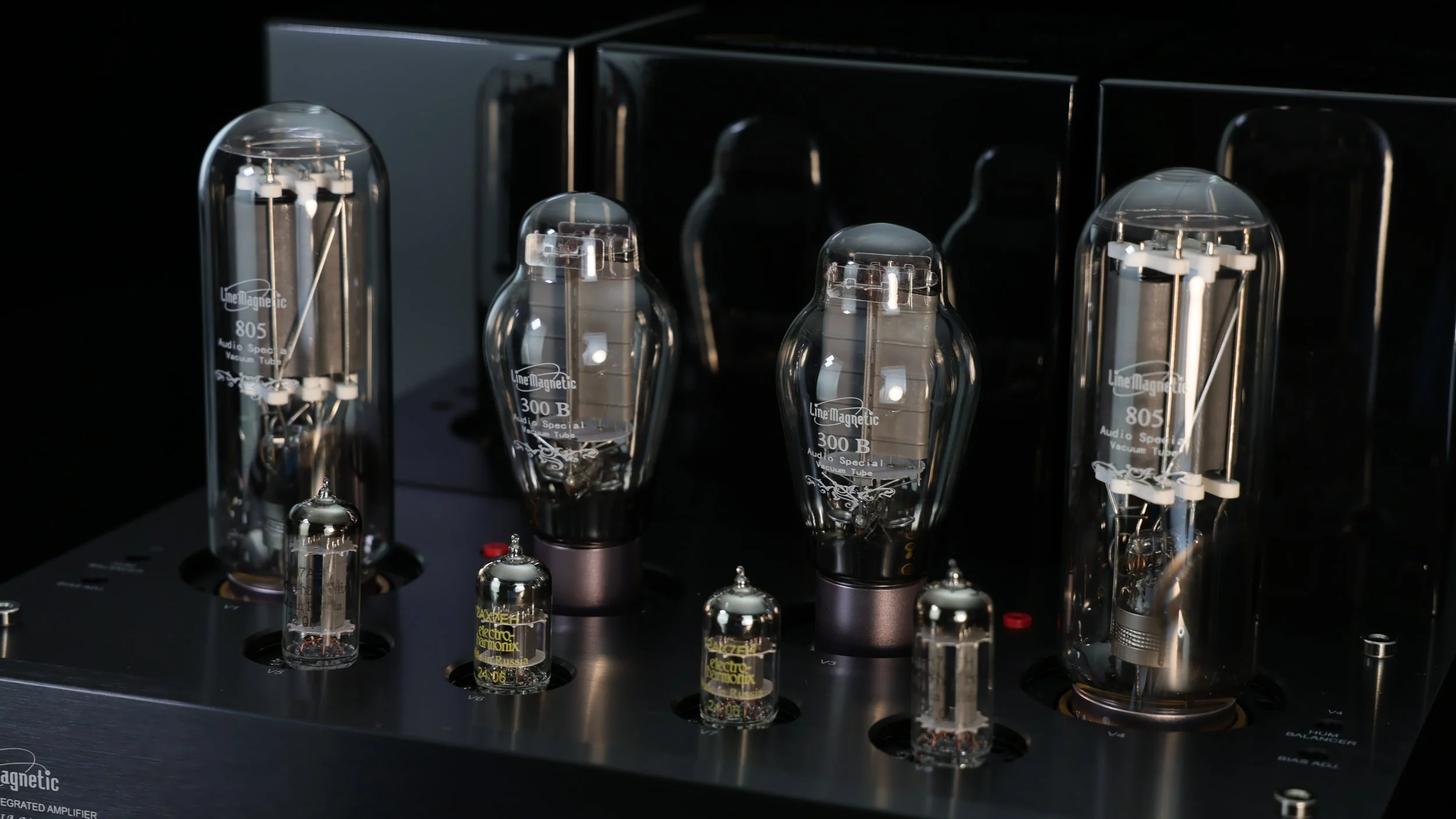

Tubes Complement: 2x 805, 2 x 300B, 2 x 12AX7, 2 x 12BH7
Power Consumption: 490 W
Voltage: 240V~
Dimensions (W x H x D): 432 x 279 x 465 mm
Net Weight: 53.5 Kg
